VeriShotᵀᴹ Single Valve Gate System
►Compact ► Precise ► Stainless Steel

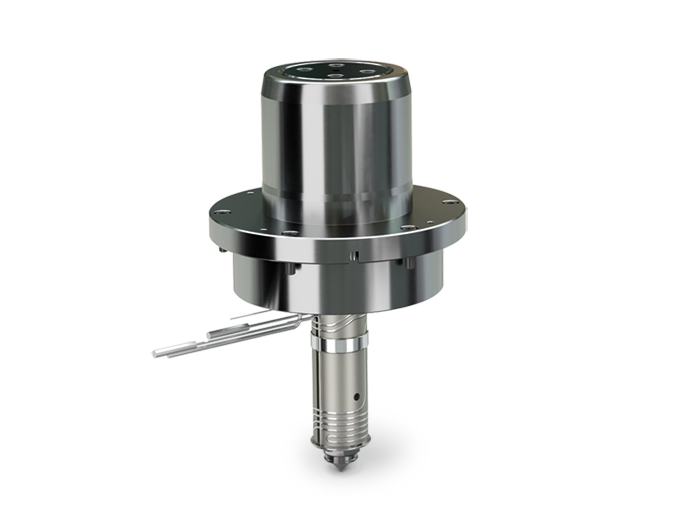

Sporting an extremely compact design, the VeriShotᵀᴹ system greatly reduces mold height requirements as it doubles as a locating ring housing the mechanics. This ensures perfect alignment between mold and machine platens.
Pre-assembled, VeriShotᵀᴹ features Mastips FlowLoc™ threaded leak proof nozzles with advanced heating technology for optimum control, providing exceptional thermal performance for improved part quality making it ideal for applications requiring a highly cosmetic gate finish, fast flow rates, large volume parts, and dimensional accuracy.
With an excellent thermal profile, VeriShotᵀᴹ ensures a wide molding window and is capable of processing a wide range of both engineering and commodity polymers. Low mold filling stress results in superior part quality and consistency.
With patent-pending technology that includes high-temperature seals and adjustable valve pins, the system provides a flawless injection molding process.
Speak to us today about our VeriShotᵀᴹ Single Valve Gate System!
Technical Information
-

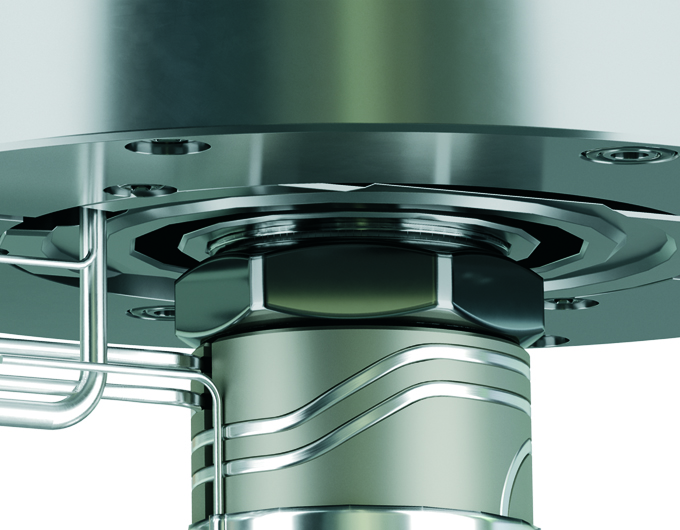

VeriShotᵀᴹ is compatible with TX16, TX19 and TX27 FlowLoc™ nozzles, which screw directly into the lower manifold providing a secure, leak-proof solution.
With Stainless Steel construction for maximum service life, with a reduced mould height at 54mm+ nozzles.
The location ring can be sized to your requirement

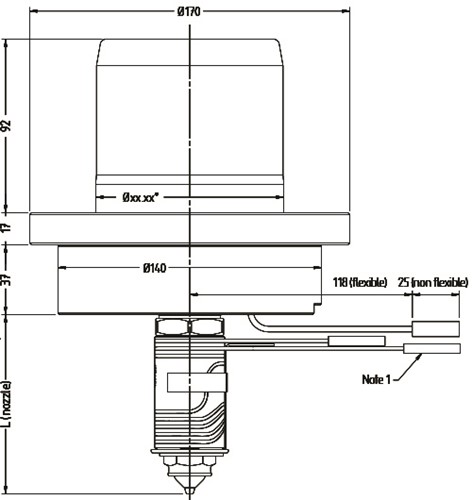

Hot Half Section
-

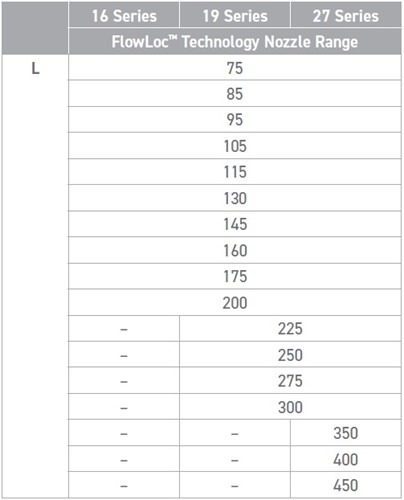

Nozzle Availability
All measurements are in millimeters
* Further nozzle lengths are available on request
Locating Ring Diameter
Available as standard sizes in Metric - 100mm-125mm and Inch - 4”-5” with further diameters available on request.

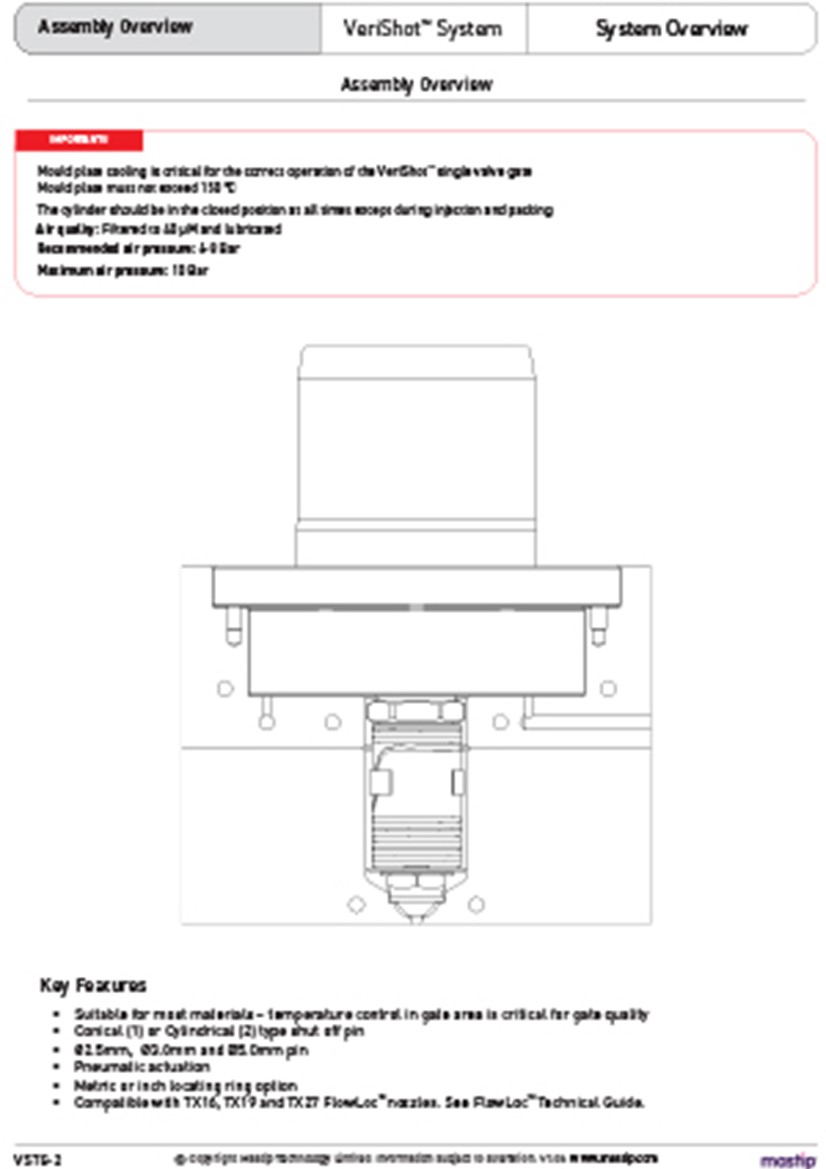

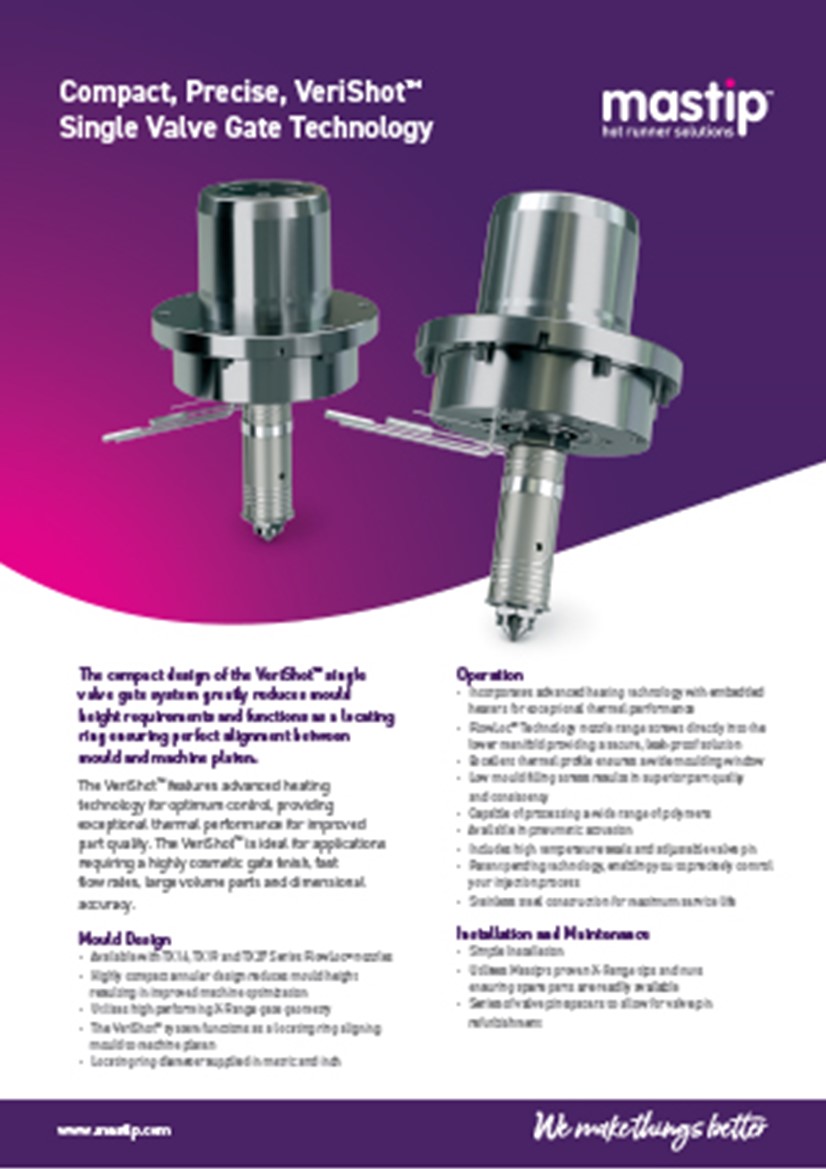

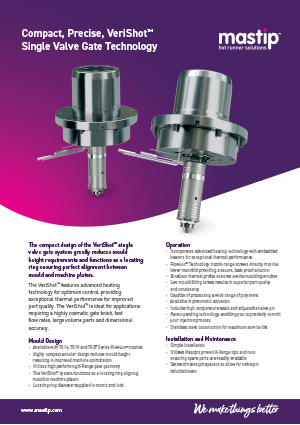

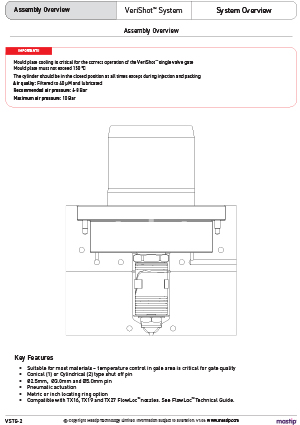

Product Information
